Combo Box--Handling "Not In List" Issue

Monday, March 04, 2002 20:29:27. Updated Thursday, November 14, 2002 21:29:21
home

Creating a Custom "Add to List" Event Procedure

Thursday, November 14, 2002 21:29:21

This solution allows the user to "double-click" the combo box and add a new entry to the list. Further, this custom situation will also even allow the user to immediately insert this new item on the list into their current entry right then & there; it will specifically prompt them for this specific thing.

The overall steps:

  • Create a special "add new" form for the list being maintained
  • Create a double-click event procedure on the combo box which opens up this custom form
  • Create programming steps in the "add new" form which prompts the user for the option to insert this new item on the list into their current entry

    "Chart of Accounts" Example

    The user has a PO invoicing system. The field which has a list which needs to be maintained is a chart of accounts. (Note: in this case, the actual account number--not an autoid field linked to the number--is what will be inserted into the entry.) You want to create a specific "add new" form which allows the user to insert a new item into the list of accounts. This form will only show the minimal fields needed to get the entry done quickly. (If, for example, you were maintaining a list of vendors which also had the name, address, phone number, zip, etc, for the "add new" form you may choose to have it only add the name, and then add the other information later on when you "clean up" the list.)

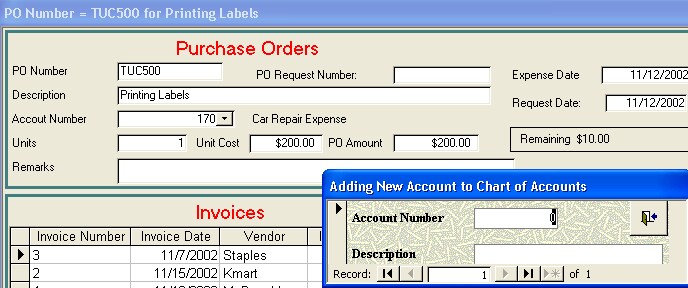

    Then, when the user "double-clicks" the combo box (how to do this explained later), you would see something like this:

    Notice the "add new" form on the bottom-right.

    Notice:
  • The form has no minimize, restore, or close window buttons. The only way to exit this form is to click the EXIT button (the door-looking button on the top-right corner of the form). This helps you, the designer, make sure the necessary code is executed which prompts the user to add this new entry.
  • Only the account number and account name fields are present on this form.
  • The form's "caption" property has been changed to say "adding new account number to chart of accounts"

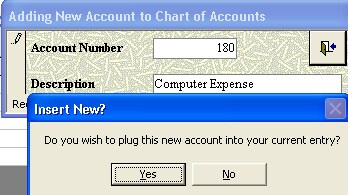

    Then, after the user enters the entry and clicks the EXIT button, the following question appears (the code for it is encoded in the EXIT sign, which explains why the X [close] button on the form is hidden):



    Creating the Add New Form
  • Create a new form based on the table containing the entries shown in the drop-down list
  • Assign it the following properties:
    Tab Property Setting
    Format Record Selectors No
      Caption Adding New Account Number to list
      Navigation Buttons No
      Control Box No
      Min Max Buttons None
      Close Button No
    Other Cycle Current Record
      Allow Design Changes Design View Only (Access 2K & XP Only)
  • Create an EXIT command button on the top-right of this form
  • Assign the following code to the button (again, this applies to the "chart of accounts" example; modify it to suit your situation)
    Private Sub cmdExit_Click()
    ' Close the form if the user clicks EXIT without entering a new entry
    If IsNull(Me.account_number) Then
    DoCmd.Close
    GoTo 99
    End If
    Dim response As Integer, message As String, x As Integer
    message = "Do you wish to plug this new account into your current entry?"
    response = MsgBox(message, vbYesNo, "Insert New?")
    If response = vbNo Then
    DoCmd.Close
    GoTo 99
    End If
    x = Me.account_number
    Forms![frmMainPos].Form.SetFocus
    Screen.ActiveControl.Value = x
    DoCmd.Close acForm, "frmAddNewChartofAccounts"
    DoCmd.RunCommand acCmdRefresh
    99 End Sub


    Then, assign the following code to the "double-click" event procedure of the combo box:
    Private Sub account_number_DblClick(Cancel As Integer)
    DoCmd.OpenForm "frmAddNewChartofAccounts", acNormal, "", "", acAdd, acNormal
    DoCmd.GoToControl "account_number"
    End Sub



    Derived From Microsoft Knowledge Base Articles Q161007 and Q88148. Also check out this article from ME.

    This article shows you two methods of using the NotInList event to add a new record to a combo box on a form.

    This article assumes that you are familiar with Visual Basic for Applications and with creating Microsoft Access applications using the programming tools provided with Microsoft Access. For more information about Visual Basic for Applications, please refer to your version of the "Building Applications with Microsoft Access" manual.

    MORE INFORMATION
    The following examples use the Orders form in the Northwind sample database to demonstrate two methods of using the NotInList event to add a record to a combo box. The NotInList event fires when you type a new company in the CustomerID (labeled Bill To:) field on the Orders form.

    The first method uses Visual Basic for Applications code to programmatically add a new record to the Customers table. The second method opens the Customers form and lets you add a new record yourself.

    CAUTION: Following the steps in this example will modify the sample database Northwind.mdb. You may want to back up the Northwind.mdb file or perform these steps on a copy of the Northwind database.

    Method 1: Using Code to Add a Record to a Table

  • Open the sample database Northwind.mdb.
  • Open the Orders form in Design view.
  • Note that the LimitToList property of the CustomerID combo box is set to Yes.
  • Set the OnNotInList property of the CustomerID combo box to the following event procedure:
          Private Sub CustomerID_NotInList (NewData As String, Response As _
                                            Integer)
             Dim Db As Database
             Dim Rs As Recordset
             Dim Msg As String
             Dim CR As String

             CR = Chr$(13)

             ' Exit this subroutine if the combo box was cleared.
             If NewData = "" Then Exit Sub

             ' Confirm that the user wants to add the new customer.
             Msg = "'" & NewData & "' is not in the list." & CR & CR
             Msg = Msg & "Do you want to add it?"
             If MsgBox(Msg, vbQuestion + vbYesNo) = vbNo Then
                ' If the user chose not to add a customer, set the Response
                ' argument to suppress an error message and undo changes.
                Response = acDataErrContinue
                ' Display a customized message.
                MsgBox "Please try again."
             Else
                ' If the user chose to add a new customer, open a recordset
                ' using the Customers table.
                Set Db = CurrentDB
                Set Rs = Db.OpenRecordset("Customers", DB_OPEN_TABLE)
                ' Let code execution continue if a run-time error occurs.
                On Error Resume Next
                ' Create a new record.
                Rs.AddNew
                   ' Ask the user to input a new Customer ID.
                   Msg = "Please enter a unique 5-character Customer ID."
                   Rs![CustomerID] = InputBox(Msg)
                   ' Assign the NewData argument to the CompanyName field.
                   Rs![CompanyName] = NewData
                ' Save the record.
                Rs.Update

                If Err Then
                   ' If a run-time error occurred while attempting to add a new
                   ' record, set the Response argument to suppress an error
                   ' message and undo changes.
                   Response = acDataErrContinue
                   ' Display a customized message.
                   MsgBox Error$ & CR & CR & "Please try again.",vbExclamation
                Else
                   ' If a run-time error did not occur, set Response argument
                   ' to indicate that new data is being added.
                   Response = acDataErrAdded
                End If

             End If
          End Sub

  • Open the Orders form in Form view.
  • Add a new order, typing ABC Wholesalers in the Bill To field, and enter ABCWH when you are prompted for the Customer ID. The code in the OnNotInList event procedure runs and adds a new customer to the Customers table.

    Method 2: Using a Form to Add a New Record

  • Open the sample database Northwind.mdb.
  • Open the Orders form in Design view.
  • Note that the LimitToList property of the CustomerID combo box is set to Yes.
  • Set the OnNotInList property of the CustomerID combo box to the following event procedure:
          Private Sub CustomerID_NotInList (NewData As String, Response As _
                                            Integer)
             Dim Result
             Dim Msg As String
             Dim CR As String

             CR = Chr$(13)

             ' Exit this subroutine if the combo box was cleared.
             If NewData = "" Then Exit Sub

             ' Ask the user if he or she wishes to add the new customer.
             Msg = "'" & NewData & "' is not in the list." & CR & CR
             Msg = Msg & "Do you want to add it?"
             If MsgBox(Msg, vbQuestion + vbYesNo) = vbYes Then
                ' If the user chose Yes, start the Customers form in data entry
                ' mode as a dialog form, passing the new company name in
                ' NewData to the OpenForm method's OpenArgs argument. The
                ' OpenArgs argument is used in Customer form's Form_Load event
                ' procedure.
                DoCmd.OpenForm "Customers", , , , acAdd, acDialog, NewData
             End If

             ' Look for the customer the user created in the Customers form.
             Result = DLookup("[CompanyName]", "Customers", _
                      "[CompanyName]='" & NewData & "'")
             If IsNull(Result) Then
                ' If the customer was not created, set the Response argument
                ' to suppress an error message and undo changes.
                Response = acDataErrContinue
                ' Display a customized message.
                MsgBox "Please try again!"
             Else
                ' If the customer was created, set the Response argument to
                ' indicate that new data is being added.
                Response = acDataErrAdded
             End If
          End Sub

  • Save and close the Orders form.
  • Open the Customers form in Design view.

    Set the form's OnLoad property to the following event procedure:
          Private Sub Form_Load ()
             If Not IsNull(Me.OpenArgs) Then
                ' If form's OpenArgs property has a value, assign the contents
                ' of OpenArgs to the CompanyName field. OpenArgs will contain
                ' a company name if this form is opened using the OpenForm
                ' method with an OpenArgs argument, as done in the Orders
                ' form's CustomerID_NotInList event procedure.
                Me![CompanyName] = Me.OpenArgs
             End If
          End Sub


  • Save and close the Customers form, and then open the Orders form in Form view.
  • Add a new Order, typing ABC Distributors in the Bill To field. When the Customers form opens, type ABCDI in the Customer ID field, and type anything you like for the remaining customer information.
